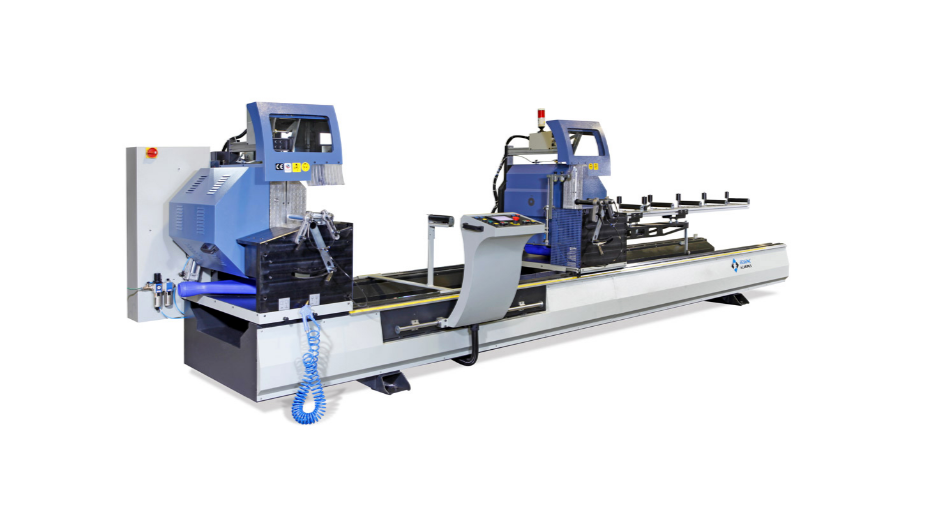

OMRM 133- Automatic Double Head Aluminium Profile Cutting Machined
Double sided precision cutting of Aluminium profiles at 45°, 90° and intermediate degrees
  • Automatic positioning for 45° and 90 °degrees
  • Saw blade Ø 550 mm
  • Output of saw blade is 200 mm
  • Servo control system provides fast positioning and size precision
  • Linear rail motion system reduces friction
  • Touch screen monitor
  • PLC control system
  • Automatic cutting mode for long profiles up to 7,5 meter
  • Repetitive cutting mode
  • Multilanguage menu
  • Left head is fixed, right head is movable
  • Single head and double head operation possibility
  • Support unit prevents profile from sagging
  • Conveyor system for profile on right head
  • Adjustable saw blade output speed
  • Industrial dust exhaust
  • Hydro pneumatic and cooling systems for Aluminium cutting
  • Vertical clamp system
Options:
  • Ethernet data transfer module
  • Barcode printer
