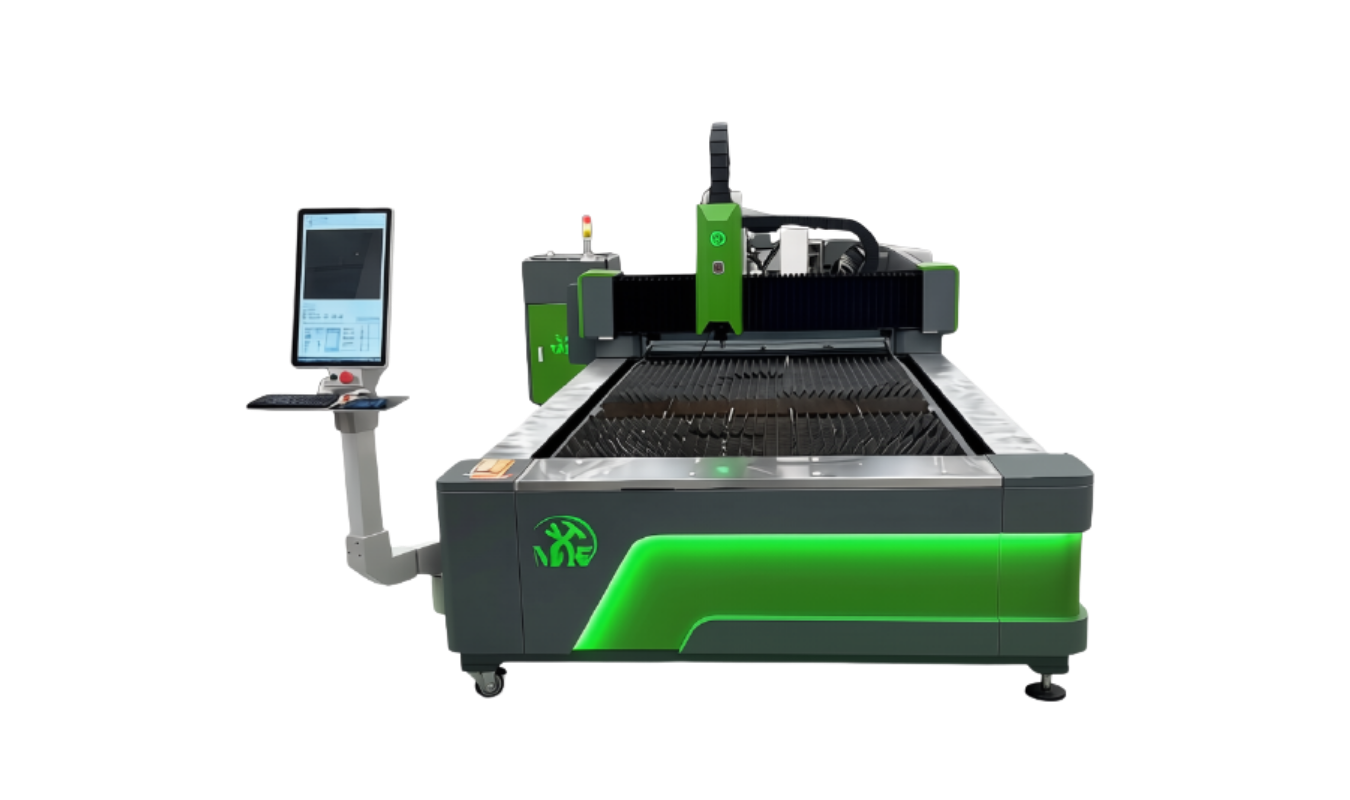

FIBER LASER CUTTING MACHINE
Model: 3015S - RAYCUS
The 3015S Fiber Laser Cutting Machine is built for fabricators who need fast, clean and repeatable cutting across a wide range of metal sheets. It combines a Raycus fiber laser source with a 3000 mm × 1500 mm customizable processing area, a double-drive rack and pinion transmission, and a Raytools cutting head, so it can handle everyday production work as well as demanding fabrication jobs.
TECHNICAL PARAMETERS
| Components | 2kW | 3kW | 6kW |
|---|---|---|---|
| Laser Generator | Raycus | Raycus | Raycus |
| Laser Power | 2000w | 3000w | 6000w |
| Weight | 3000kg | 3000kg | 3000kg |
| Processing Area | 3000mm x 1500mm | 3000mm x 1500mm | 3000mm x 1500mm |
| Repeated Positioning Accuracy | +0.02mm | +0.02mm | +0.02mm |
| Maximum Operating Speed | 80m/min | 80m/min | 80m/min |
| Transmission Mode | Double Driver Rack Gear | Double Driver Rack Gear | Double Driver Rack Gear |
| Power Consumption | <10kW | <10kW | <10kW |
| Power Supply | 380V 50Hz/60A | 380V 50Hz/60A | 380V 50Hz/60A |
MAIN CONFIGURATIONS
| CONFIGURATION | BRAND/ORIGIN |
|---|---|
| Laser | Raycus Fiber Generator |
| Axis of rotation | 3m-6m pneumatic chuck gear drive |
| Rotary shaft servo | Yaskawa Servo |
| Cutting head | Raytools BM109, Switzerland |
| Electronic element device | Schneider |
| Reducer | Shimpo Reducer Japan |
| Control system | Cypcut |
| Water chiller | HL-3000W |
FIBER LASER CUTTING MACHINE
Structure and Characteristics
Double-Drive Structure
A double rack and gear transmission with Apex racks and Shimpo reducers keeps motion smooth and stable at high speeds and over long production runs.
Saves Floor Space
The integrated design replaces separate sheet and tube machines, freeing workshop space for production, storage or expansion.
High-Speed Cutting
Operating speeds up to 80 m/min and 1G acceleration help increase output.
Repeat Accuracy
Consistent positioning for repeatable, precise parts across production runs.
Trusted Branded Components
Raycus, Raytools, Yaskawa, Fuji, Schneider, APEX and Shimpo for dependable operation.
Wide Material Range
Cuts stainless steel, carbon steel, galvanized steel, aluminum, brass, manganese steel and alloys.
