CNC MILLING AND BORING MACHINE

Model: MKB6125

Delivers machining accuracy within 0.05–0.10mm, with cumulative tolerance maintained at ±0.10mm. The optimized rack structure minimizes long-term tolerance accumulation, ensuring consistent precision over extended use. Equipped with an automatic sheet-length detection and self-check system that prevents incorrect plate loading and misalignment, reducing the risk of collisions and protecting the machine from damage.

Components	Specification
Model	MKB6125
Number of drill tools	Qty.24 - Top Drilling
	Qty.16 - Horizontal Drilling
	Qty.9 - Vertical Drilling
Thickness	10-50mm
Width	35-1220mm
Length	250-3500mm
Table height	950mm
Gross Power	21.5kw
Drill pack spindle power	2.2kw x 3sets
Drill pack spindle speed	4500rpm
Upper and lower spindle power	3.5kw x 2
Upper and lower spindle speed	24000rpm
Spindle mounting clamp form	ER32
Operating voltage	380V 60HZ
Working pressure	0.6 - 0.8mpa
Overall dimension	6500 x 2900 x 2200mm
Net weight	Appro. 4000kg

Components	Brand	Components	Brand
Drill Package	CC Special Customization	Driver	China
CAM Software	Tridimensional Scientist	Promixy Switch	Rayco
Control System	Taiwan Baoyuan	Optical Fiber Sensor	Korean Tonic
Servo Motor	Resai Technology Bus Control	Precision Slider Guide	Taiwan Sanding
Frequency Changer	Fuling Techology	Rack and Pinion	Bosch Trang Grinding Grade
Spindle Motor	Han Qi Special Custom	Ball Screw	Shangyin Taiwan
Air Switch	Schneider	Air Valve Group	Newsmax
AC Contactor	Schneider	Pneumatic Component	Mycos
Switching Power Supply	Taiwan Mingwei	Barcode Scanner	Honeywell
Phase Sequence Protector	Taiwan Scholar	Planetary Reducer	Cuhk Seiko
Relay	Schneider

Project Portfolio

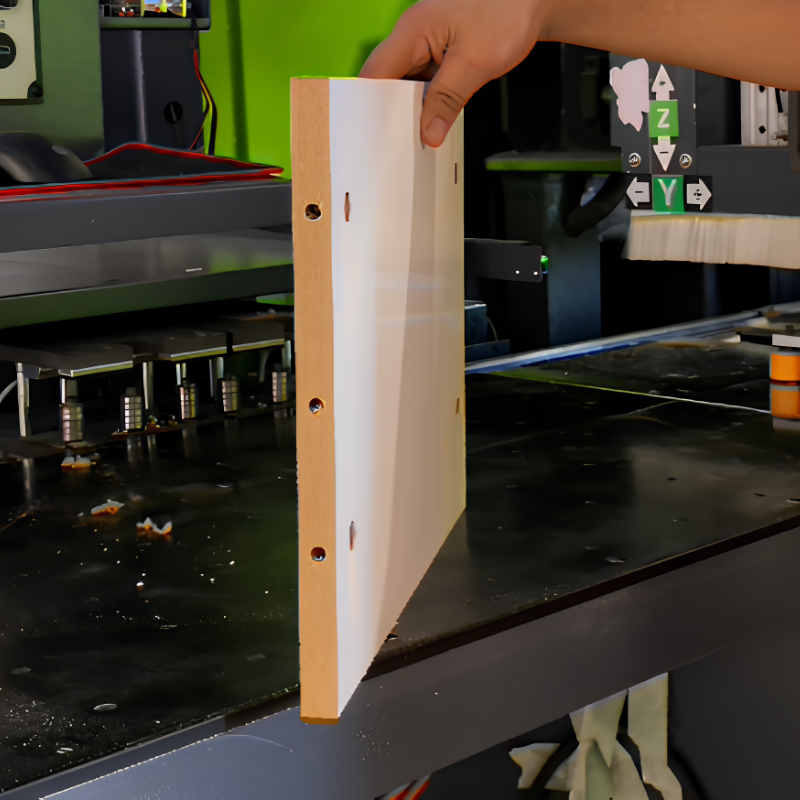

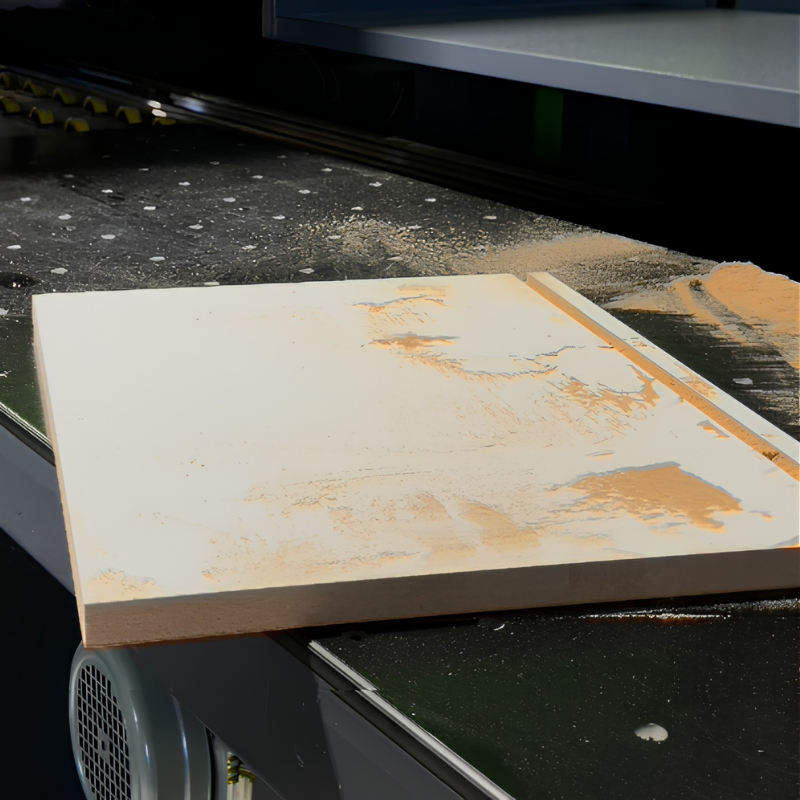

MACHINE WORK APPLICATION

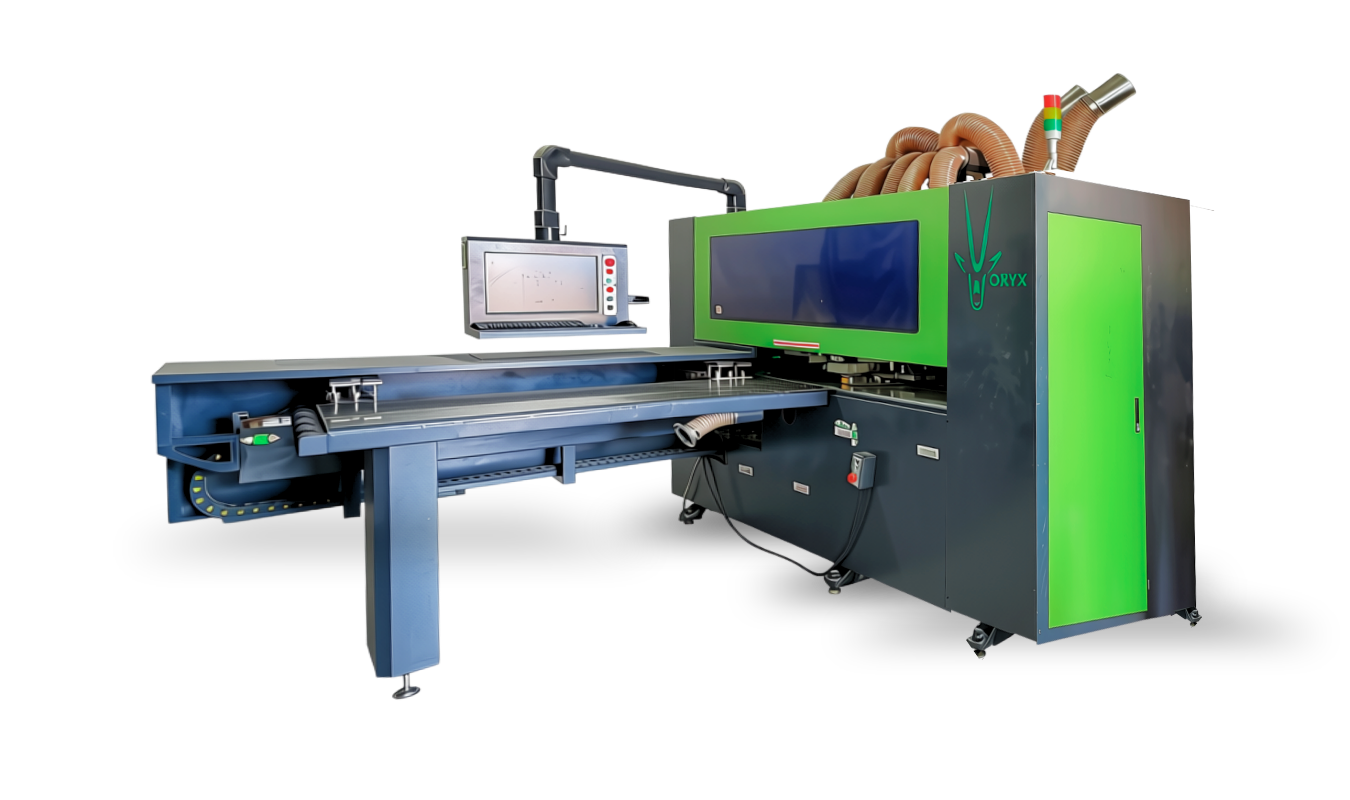

CNC MILLING AND BORING MACHINE - ORYX

Structure and Characteristics

High Precision Performance

Intelligent Error Prevention

Equipped with an automatic sheet-length detection and self-check system that prevents incorrect plate loading and misalignment, reducing the risk of collisions and protecting the machine from damage.

Flexible Material Discharge

Supports both front and rear discharge options, allowing users to select the most suitable unloading method based on production layout and workflow requirements.

Smart Unmanned Production

Designed for seamless integration into automated production lines. Compatible with CAM software for intelligent processing, offering an intuitive interface for easier operation and improved production efficiency.

Remote Service System

Powered by the Taiwan Baoyuan Control System, enabling remote diagnostics, database backups, and software updates for efficient maintenance and continuous performance optimization.

Expanded Processing Range

Features a unique clamping design that enables the processing of workpieces as small as 100 mm or less, maximizing material utilization and production flexibility.
