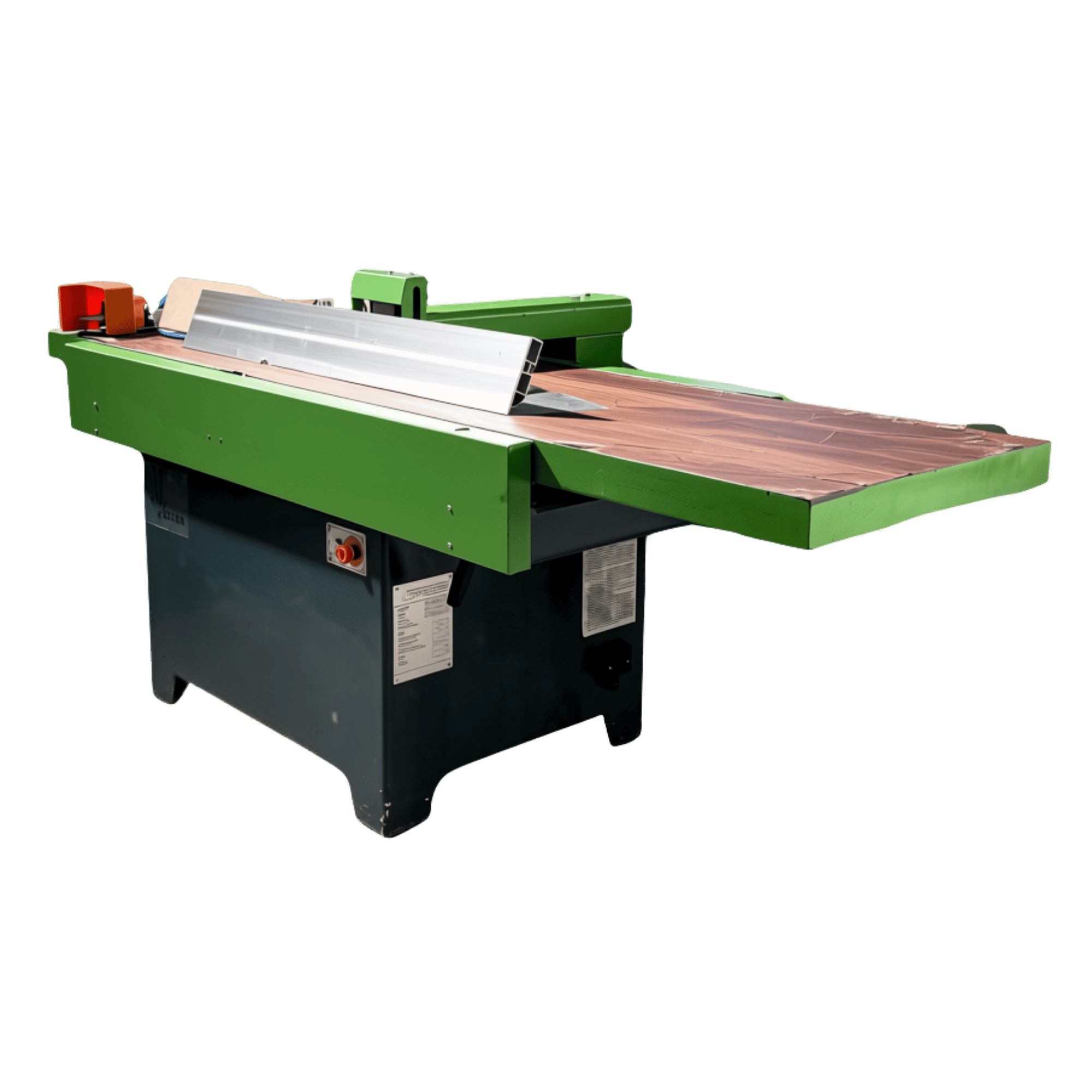

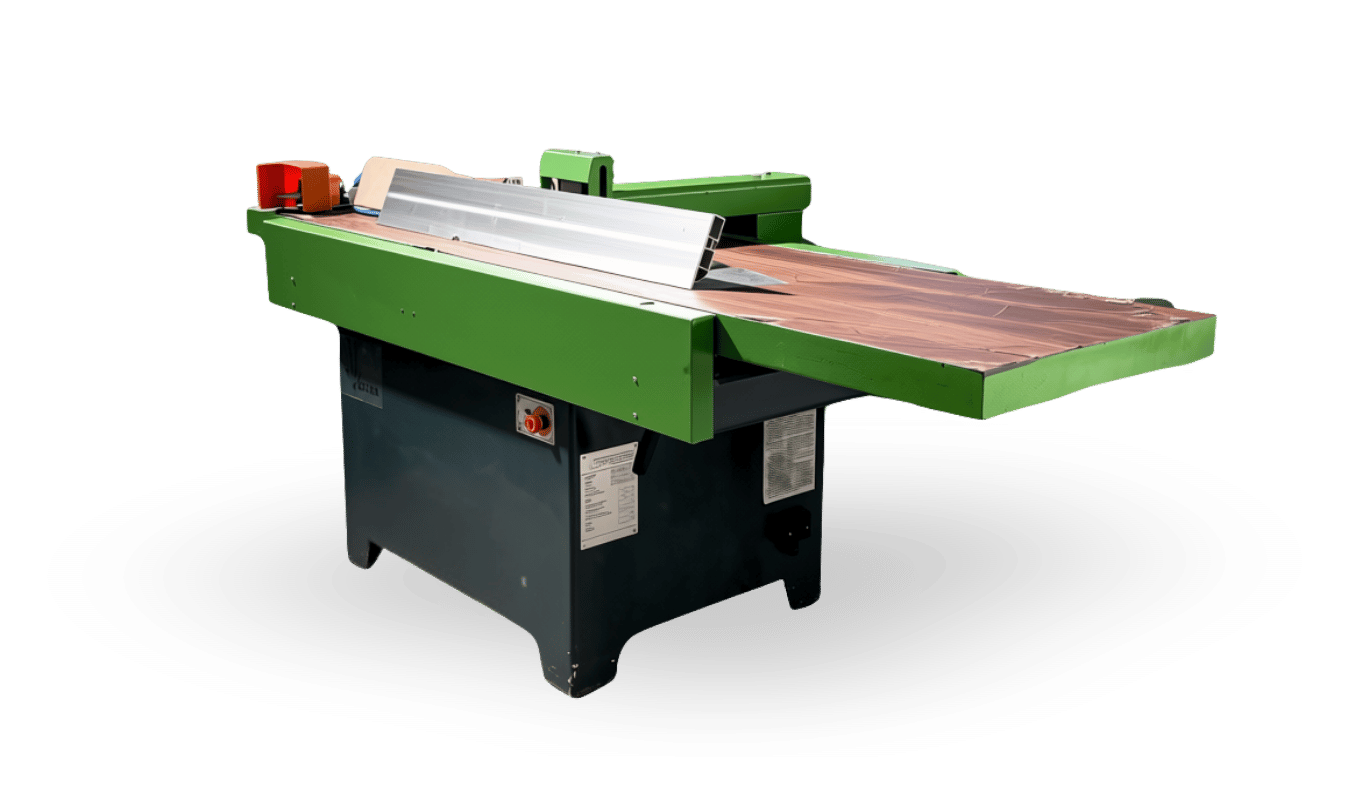

HEAVY SURFACE PLANER

Model: TORNADO 63

Built on a solid cast-iron table for vibration control and long-term accuracy, this planer machine is engineered to hold tight tolerances across repeated production cycles; an important consideration for fabrication and furniture manufacturing businesses where surface consistency directly affects downstream assembly, veneering, and finishing quality.

TECHNICAL PARAMETERS

Component	Specification
Working table length	2500 mm
Maximum planning width	630 mm
Maximum planning depth	5 mm
Spindle speed	5000 r/min
Number of blades	4
Cutter diameter	102 mm
Motor power	5.5 kW
Motor speed	2900 r/min
Overall dimensions	2500 x 1040 x 1050 mm
Net weight	640 kg

MAIN FEATURES

Multi-speed pulley

Feeding speed

Counter and counter-clockwise spindle rotation direction

HEAVY SURFACE PLANER - ORYX

Structure and Characteristics

Wide-Format Capacity

A 630 mm planing width and 2500 mm table length allow workshops to process wide boards and long timber sections in a single pass, reducing handling time and improving throughput on large production runs.

Precision Planing Performance

The 4-blade cutter head and spindle work together to deliver a smooth, consistent surface finish, minimizing the need for additional sanding or rework further down the production line.

Built for Continuous Production

A robust motor power and solid cast-iron construction are designed to withstand extended operating hours in demanding furniture manufacturing and joinery environments,

Vibration-Resistant Frame

The heavy machine base and rigid table construction reduce vibration during operation, helping maintain planing accuracy and blade life even under continuous industrial use.

Multiple Timber Applications

From solid wood components to engineered boards, this planer is adaptable across furniture manufacturing, joinery, cabinetry, etc.,

Heavy-Duty Construction

Compact overall dimensions relative to its capacity make this machine practical to integrate into existing workshop layouts alongside other woodworking machinery.
