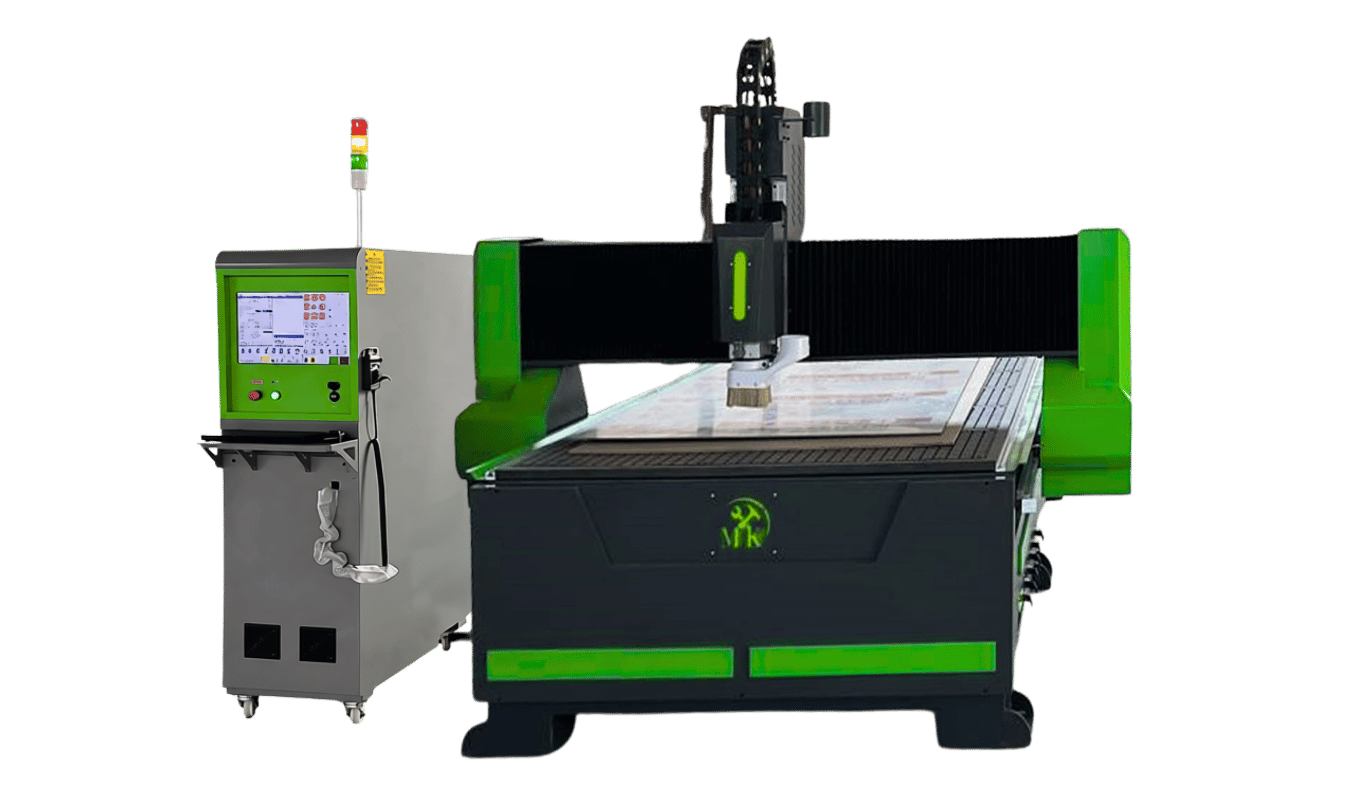

CNC ROUTER MACHINE

Model: S21530

This CNC Router is engineered with a gantry structure and bilateral drive powered by a gear rack system and excellent overall stability. The design keeps operating costs extremely low while maintaining high-quality processing results and strong adaptability across a wide range of applications, making it a dependable choice for demanding production environments. Built primarily for cutting, drilling, and slotting operations, the machine excels at special-shaped cutting tasks and runs with consistent, stable performance throughout the entire process. Backed by mature, proven technology, it offers high work efficiency alongside low operating costs, ensuring reliable output run after run.

Features	Specification
Travelling Size	1500 x 3700 x 200 mm
Working Size	1500 x 3700 x 180 mm
Table Size	1500 x 3700 mm
Transmission	X/Y Rack and Pinon Drive, Z-Ball
Table Structure	T-slot Vacuum
Spindle Power	9.0 kW
Spindle Speed	6000 - 24000 r/min
Travelling Speed	105 m/min
Working Speed	48 m/min
Tool Magazine	8 Tool Rotary Carousel
Tool Stations	8 PCs
Voltage	AC380/3PH/50HZ
Gear wheel transmission guiderail	Japan THK Gernany
Helical Rack Reduce Box	Japan DELTA
Inverter Tool Sensor Tool Holder	8PCS, ISO 30

Name	Details	Brand/Origin
Structure	Ress Relief Annealing, One-Time Forming Of Pentahedral CNC	ORYX
System	A11 DSP	Beijing Richnc
Spindle	0-18000rpm-9kw	HSD 6kw Air Cooled
Transmission	High precision linear rail	Taiwan MFC
Drive system	Bus control	Leadshine Servo
Electric component	Control element	Schneider
Power cable	High flexibility and anti-breakage, with shielding layer	Shanghai
Lubrication	Automatic control of centralized lubrication	China
Inverter	9 kW	Best
Motor		Leadshine
Safe system	Overrun protection	French Schneider + CHNT Low Voltage Electric
	Emergency stop
	Limit
	Air pressure alarm
	Door power outage
	Electrical Protection
Fitting and Parts	The transmission parts are fixed with 12.9 grade high strength screws	China
	Sheet metal id fixed with 304 stainless steel screws
Precision	Each shaft is rigidly fixed	China
	The precision parts are equipped with positioning pins
QC	Triaxial Verticality	Bozhou
	Square Rail Rack
	24-hour Lapping machine test
Accessory	Toolbox (Tools, Cutters, Tool Holders etcs)	Bozhou
	Data cable, Wrench, Pressure Plate Instruction, Set Knife Box

Project Portfolio

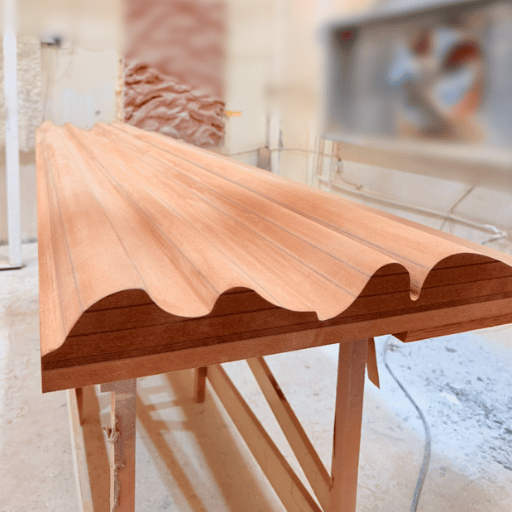

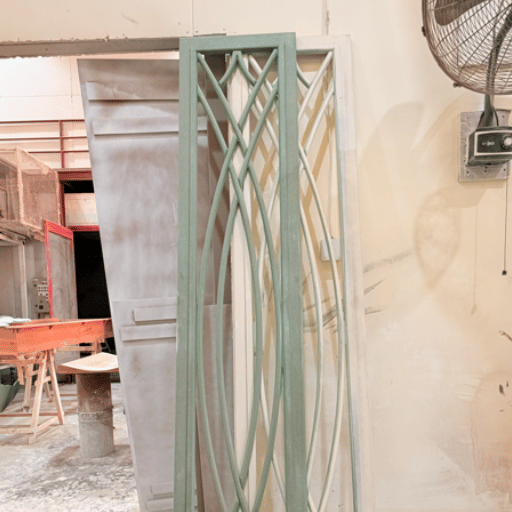

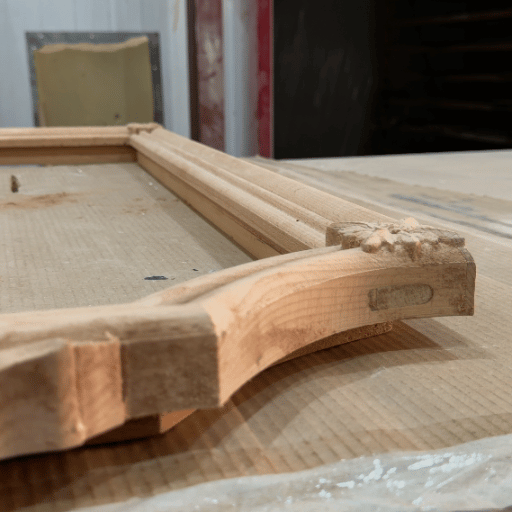

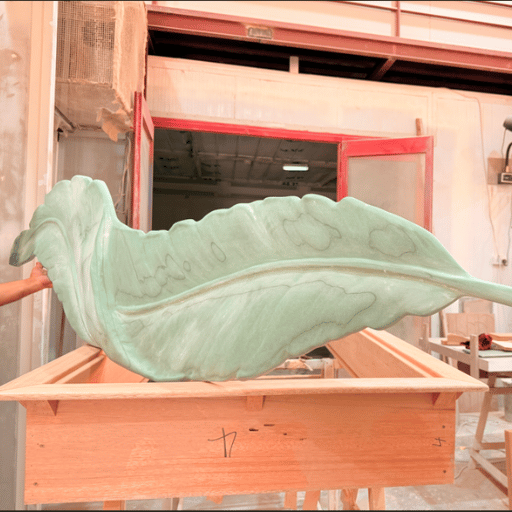

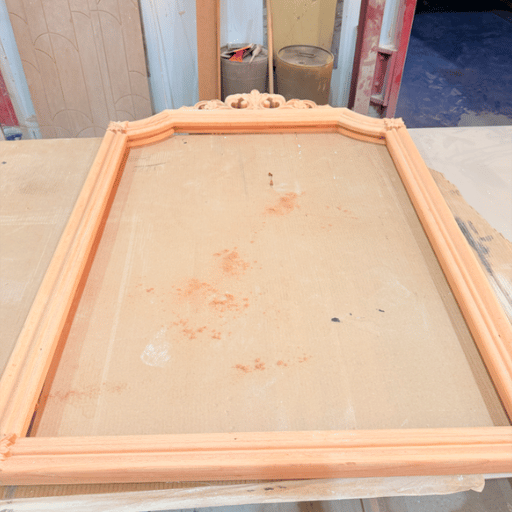

MACHINE WORK APPLICATION

CNC ROUTER - ORYX

Structure and Characteristics

Heavy-Duty Gantry Structure

A rigid gantry design with bilateral drive and precision gear-rack transmission delivers powerful performance, high-speed operation, and consistent accuracy.

Precision CNC Performance

Precision linear rails, bearings, helical rack-and-pinion drives, and a ball-screw Z-axis provide smooth, accurate movement for cutting, drilling, slotting, and complex profiles.

Long-term stability

A fully welded machine bed undergoes tempering and precision five-sided machining, while the cast-structure side plates resist deformation and maintain dimensional accuracy.

High-Speed Servo Drive

Precision gearboxes are directly coupled to the servo motors and pinions, enabling high-speed positioning, responsive motion, and reliable production performance.

Automatic Tool Changer

An Osai industrial CNC controller paired with a 12 HP HSD high-frequency automatic tool changer provides efficient multi-tool processing with an easy-to-use interface.
