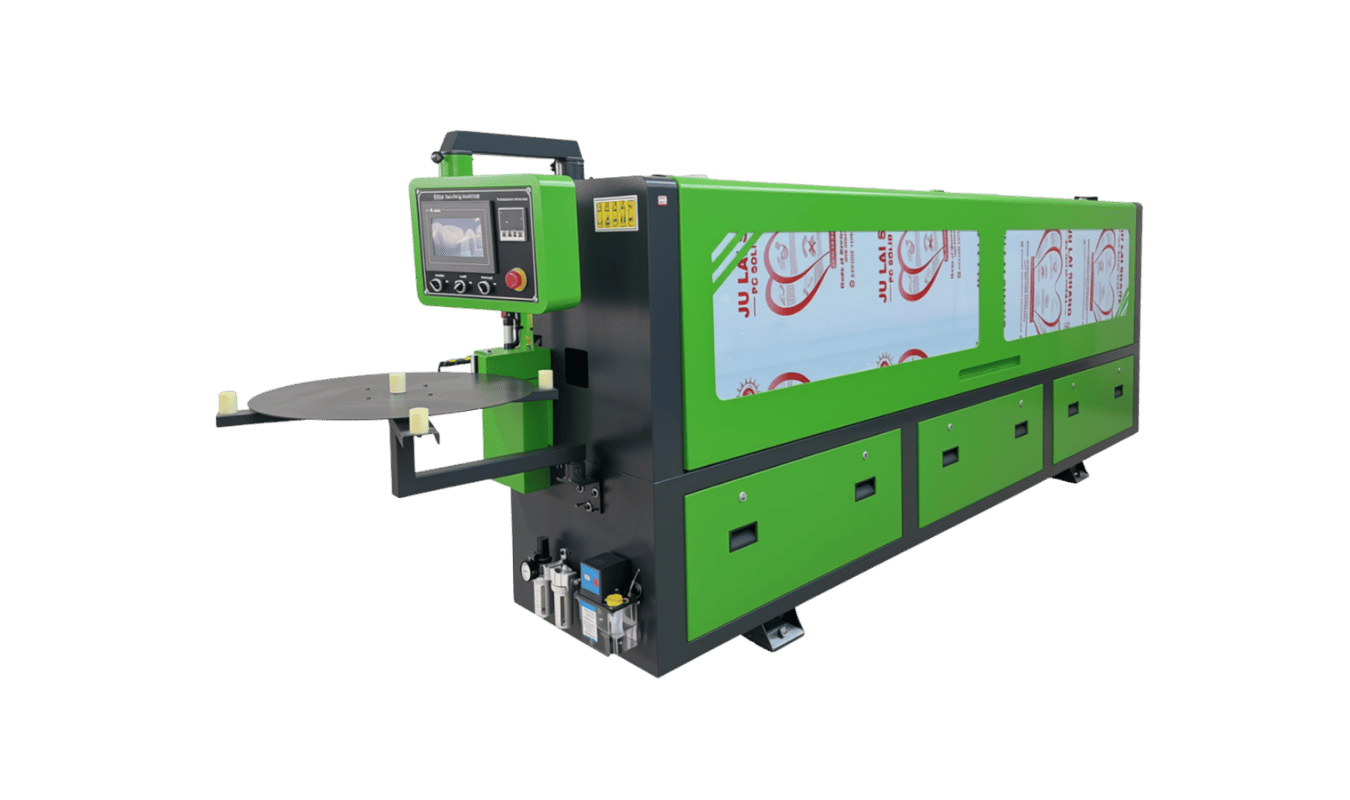

EDGE BANDING MACHINE
Model: MK550
The MK550 Edge Banding Machine is an automatic edge banding machine built for workshops and factories producing furniture, cabinetry, joinery and panel-based products. It applies, trims and finishes edge banding in one continuous pass, giving panels a clean, sealed and professional edge without manual finishing steps.Five working units handle the full process: gluing, pressing, end cutting, trimming and buffing.
MACHINE SPECIFICATION
| Component | Specification |
|---|---|
| Machine dimension | 2300 x 750 x 1500mm |
| Weight | 650kg |
| Edge band thickness | 12 - 60mm |
| Lipping band thickness | 0.3 - 3mm |
| Workpiece thickness | 8 - 60mm |
| Minimum length of workpiece | 70mm |
| Minimum width of workpiece | 55mm |
| Workpiece conveying speed | 18m/min |
| Total power | 6.5kw |
| Air pressure | 0.6mpa - 0.8mpa |
| Glue unit heating power | 1.5kw |
| Plate preheating power | 0.3kw |
| Glue unit transmission power | 0.55kw |
| Conveyor belt motor power | 1.5kw |
| End cutting motor | 0.37kw x 2 (12000 r/min 200Hz) |
| Trimming motor | 0.55kw x 2 (12000 r/min 200Hz) |
| Buffing motor | 0.18kw x 2 |
| Edge band height | 12 - 60mm |
MAIN COMPONENTS
Glue Unit
Glue UnitPr
- Heats and applies adhesive evenly to the panel edge so the band bonds firmly.
Pressing Unit
Pressing Unit
- Presses the edge band firmly against the panel as it passes through, for tight, secure adhesion.
End-cutting Unit
End-cutting Unit
- Cuts the edge band flush at the leading and trailing ends of the workpiece.
Trimming Unit
Trimming Unit
- Trims excess band material along the top and bottom edges of the panel.
Buffing Unit
Buffing Unit
- Polishes the finished edge and removes residue for a clean result.
Closer look of the machine
MACHINE GALLERY
EDGE BANDING MACHINE
Structure and Characteristics
Complete Finishing
Panels leave the machine with a finished edge, reducing manual work.
Flexible Banding Options
Works wide variety of edge profiles and materials.
High-Speed Cutting Motors
Dual end cutting and trimming motors supporting precise edge finishing.
Wide Workpiece Range
Handles panels from 8 to 60 mm thick, covering thin cabinet components through to thick furniture panels.
Consistent Production Speed
A conveying speed of 18 m/min keeps workflow steady across batches while maintaining edge quality.

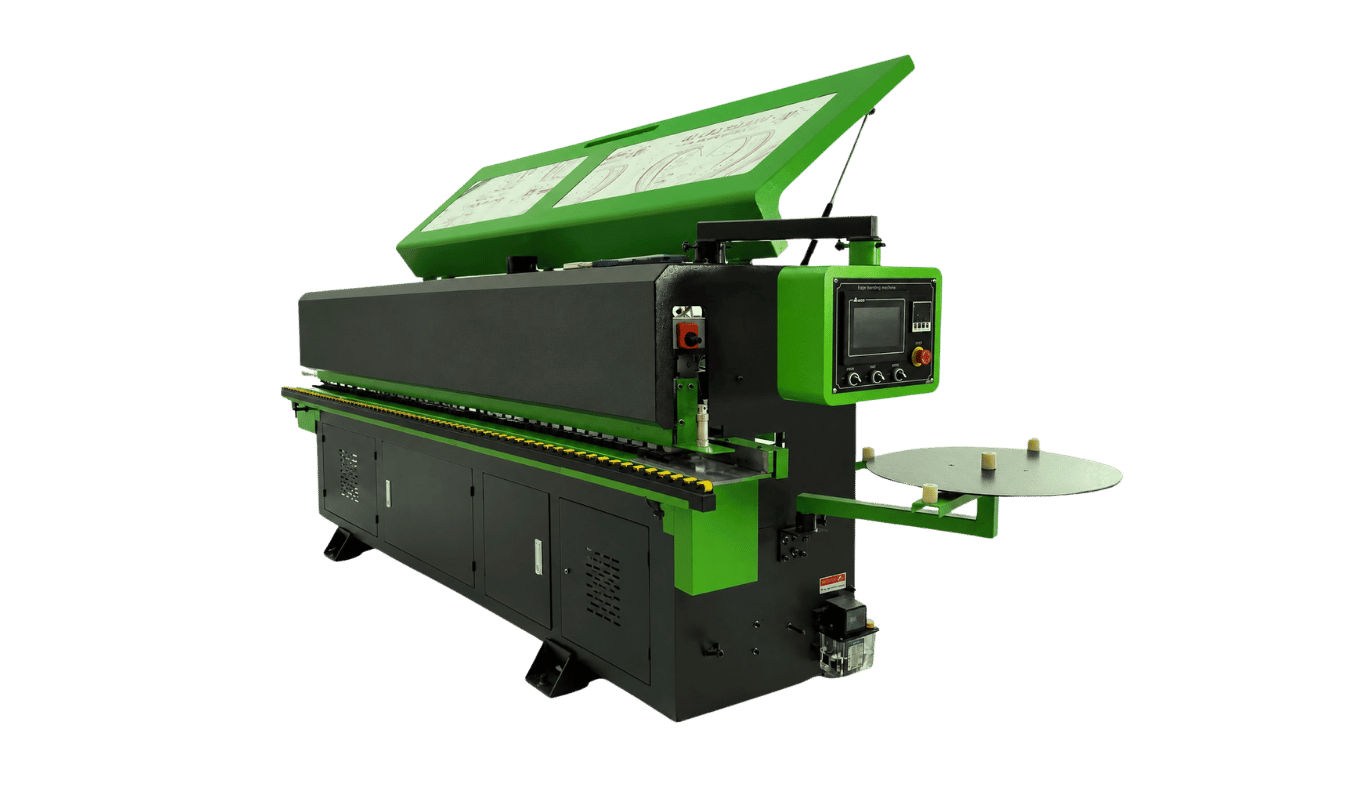

Compact, Accessible Design
Suits space-conscious workshops, and the hinged hood and cabinet doors give convenient access to the working units for routine adjustment and cleaning.
Our Global Manufacturing Partners
TRUSTED BY INDUSTRY LEADERS

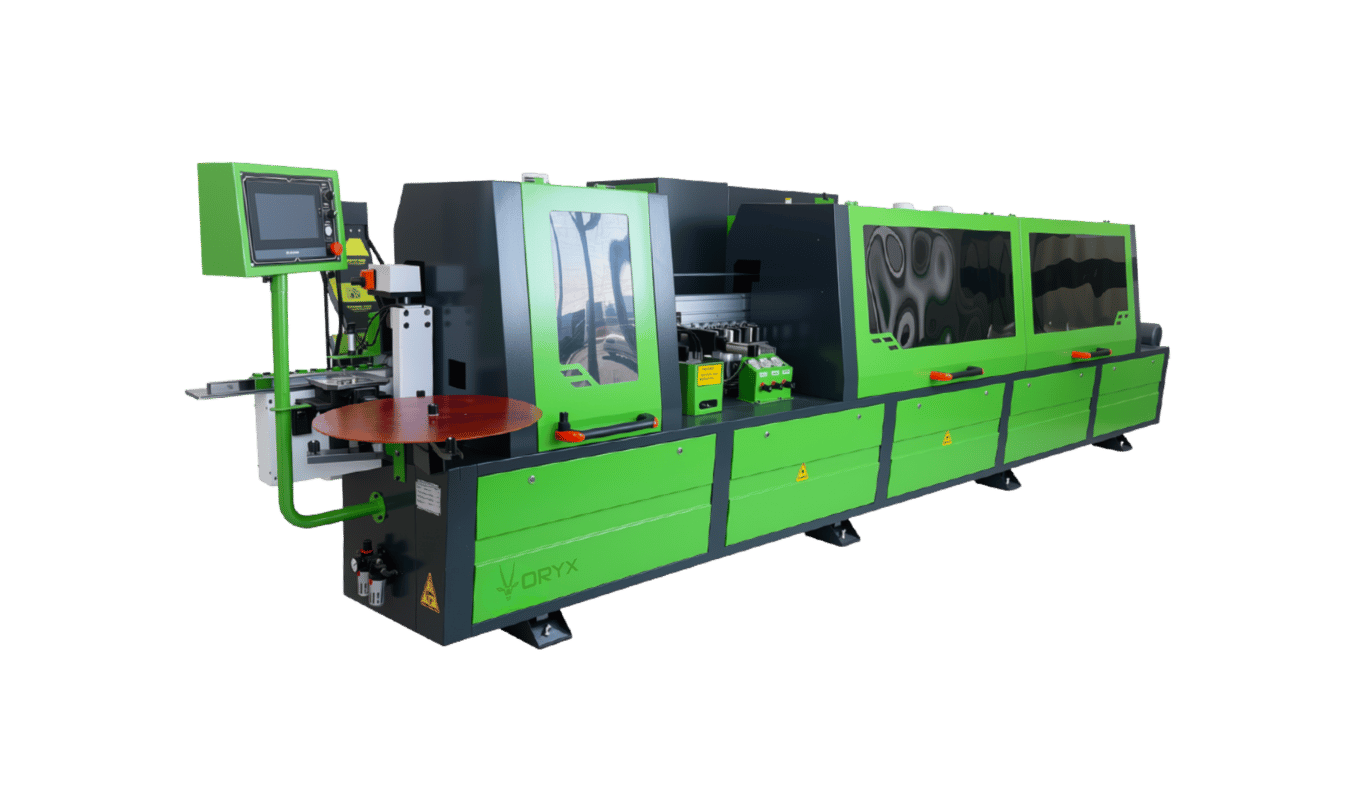

Other machine model:
